Introduction

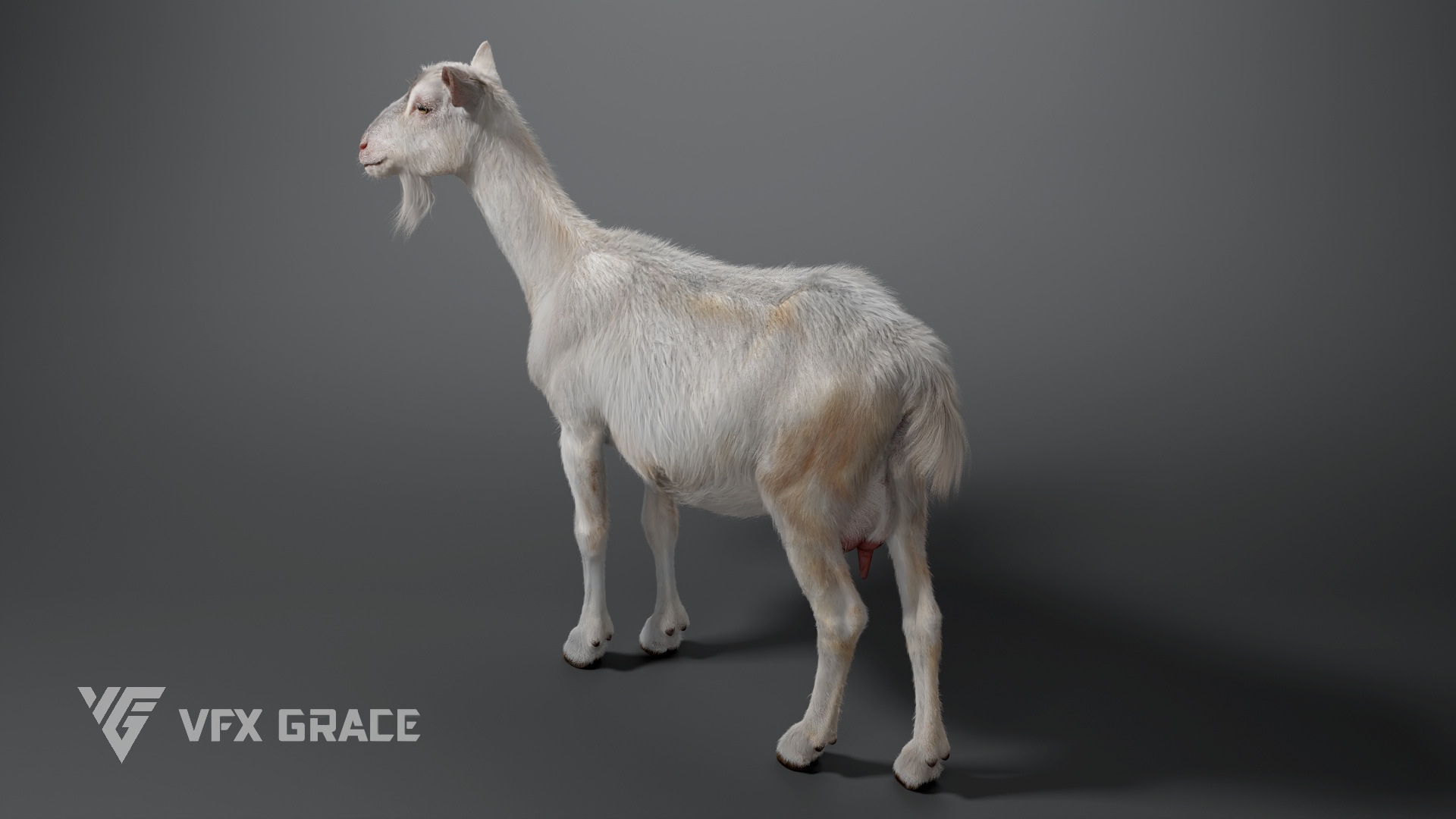

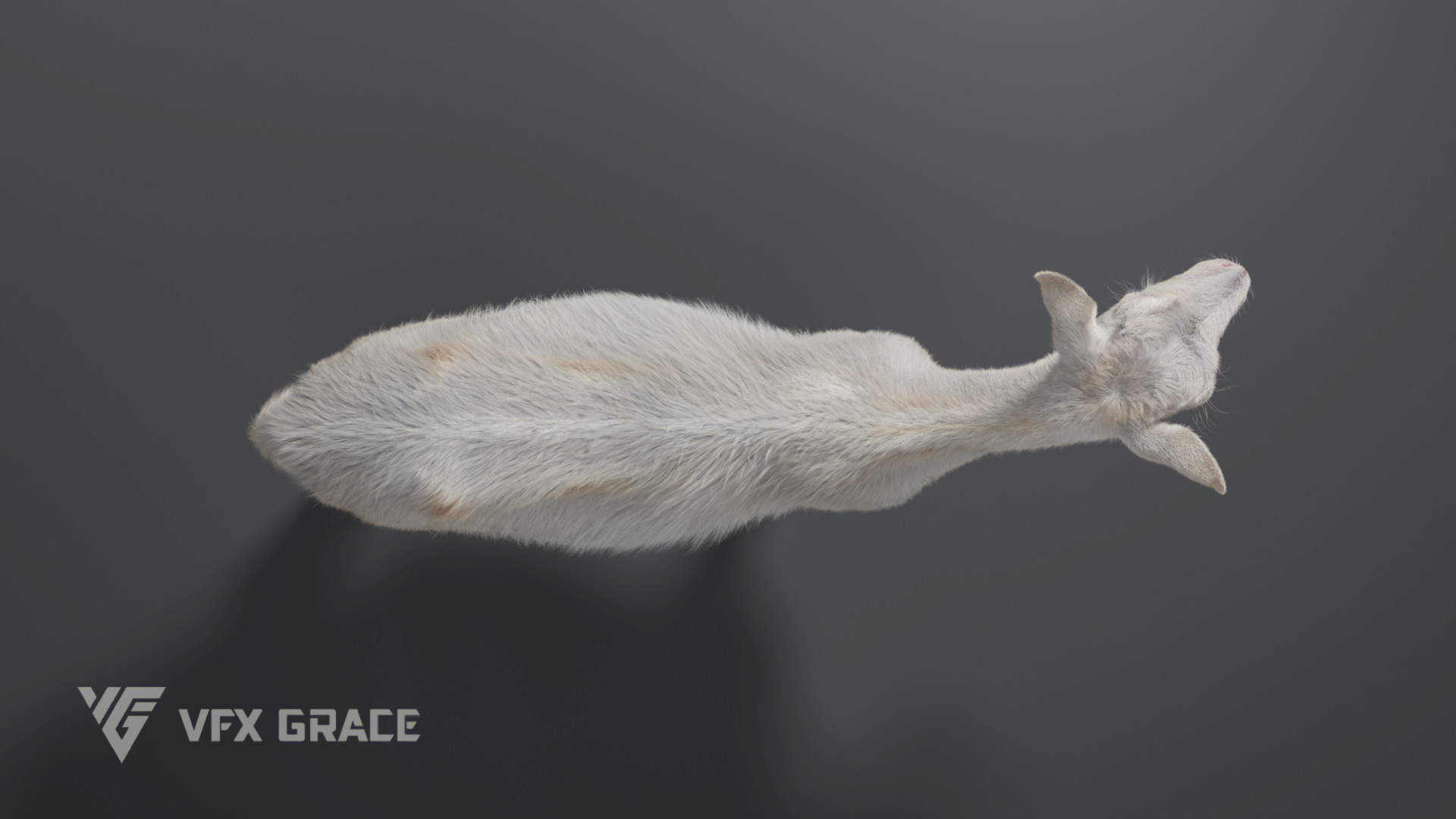

This is a high-quality goat model with maps, fur, rigging and four animations. The fur is created in XGen interactive with enough details, and all textures are rendered with Arnold renderer for realistic effects. The rigging is created with reference to real bones, making the animation in line with natural movements. The model is created with Maya 2024 at real-world scale.

It consists of the body, lacrimal glands, tears, upper oral cavity, lower oral cavity, pupil, lens, tongue, upper teeth, and lower teeth.

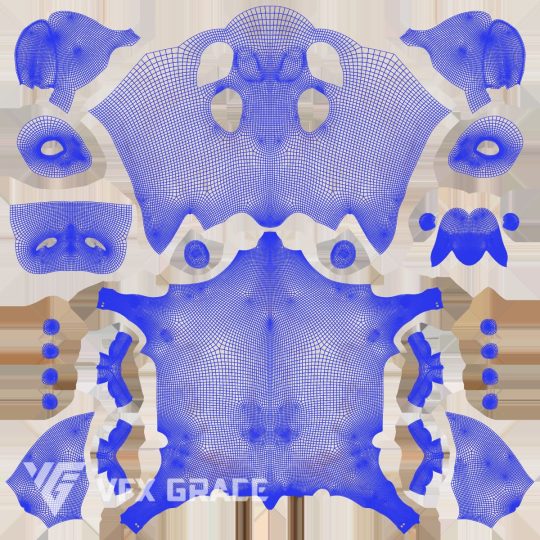

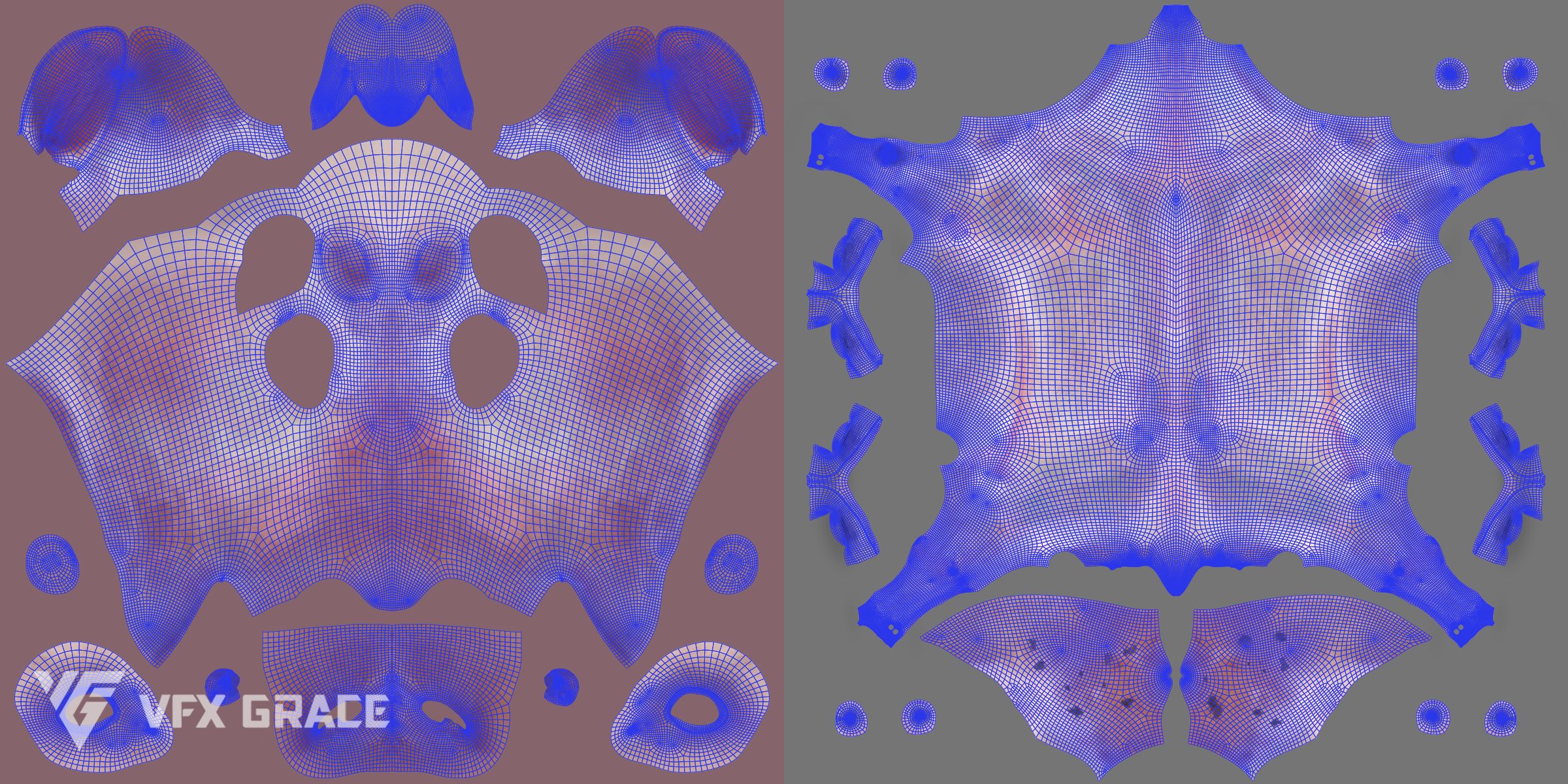

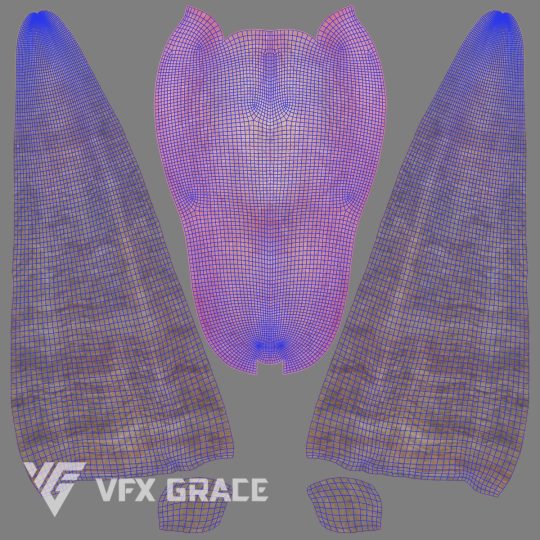

Textures and materials: There are 27 .tx files which support Arnold, all in 4K resolution for best quality and details. The materials of the character and the hair are rendered with Arnold renderer to present realistic effects. There are 2 UV sets of the body, which support single quadrant or multiple quadrants.
XGen hair: XGen interactive is used for presenting the details of the hair faster, and all maps of density and modifier masks for hair layering are included externally, all masks are in 1K resolution.

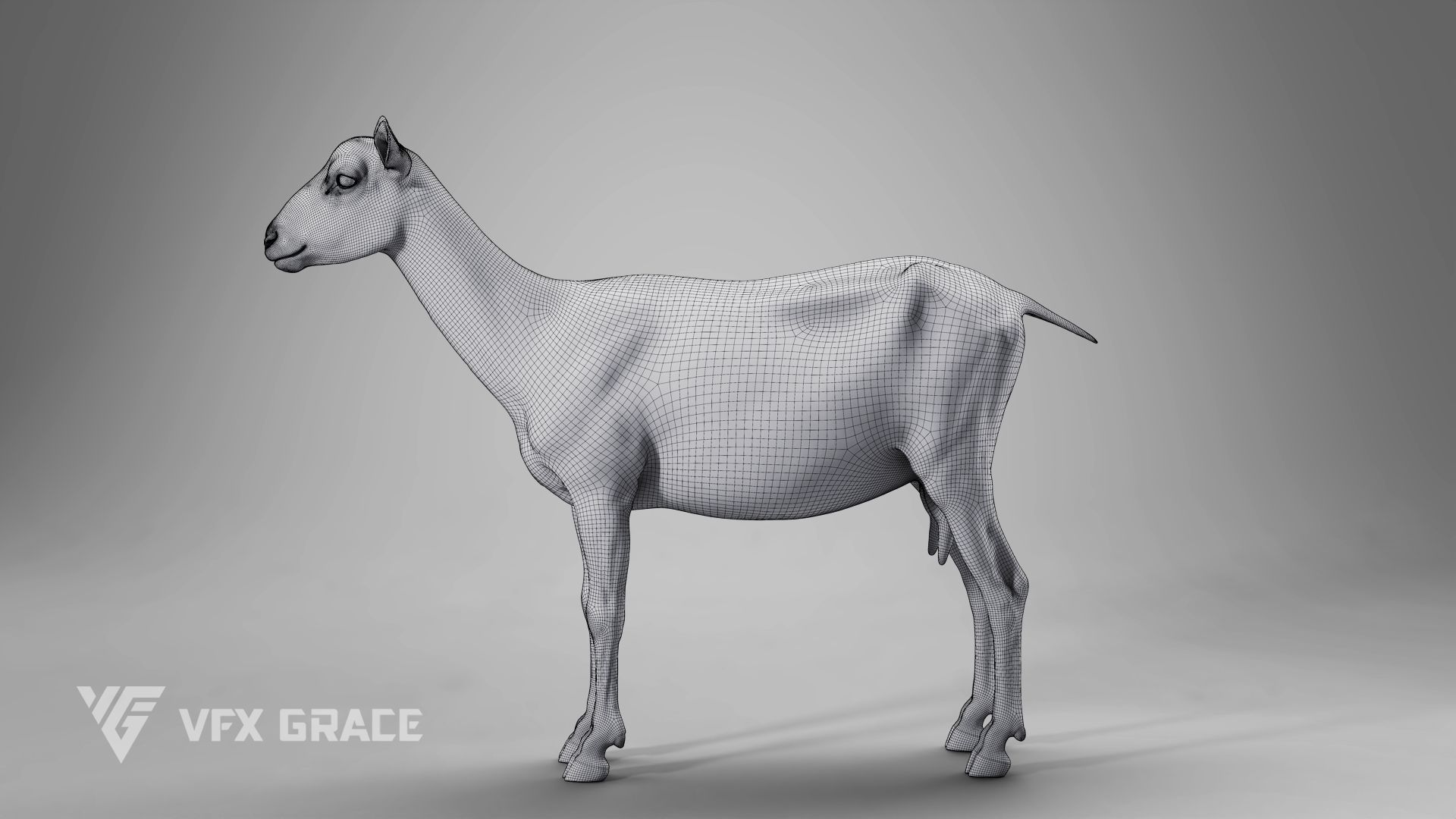

Meshes

Body: vertices 84,397; polygons 84,396
Lacrimal glands: vertices 780; polygons 776
Tears: vertices 1,316; polygons 1,312
Upper oral cavity: vertices 12,113; polygons 12,006
Lower oral cavity: vertices 6,485; polygons 6,372
Pupil: vertices 2,020; polygons 2,048
Sclera: vertices 1,700; polygons 1,728
Tongue: vertices 6,058; polygons 6,056
Upper teeth: vertices 34,424; polygons 33,928
Lower teeth: vertices 22,430; polygons 22,032
Total: vertices 171,723; polygons 170,654

Animations

Loopable walking animation at 30 fps, frame range 1-145
Unlooped eating Grass animation at 30 fps, frame range 1-350
Unlooped look-around animation at 30 fps, frame range 1-385
Loopable trotting animation at 30 fps, frame range 1-161

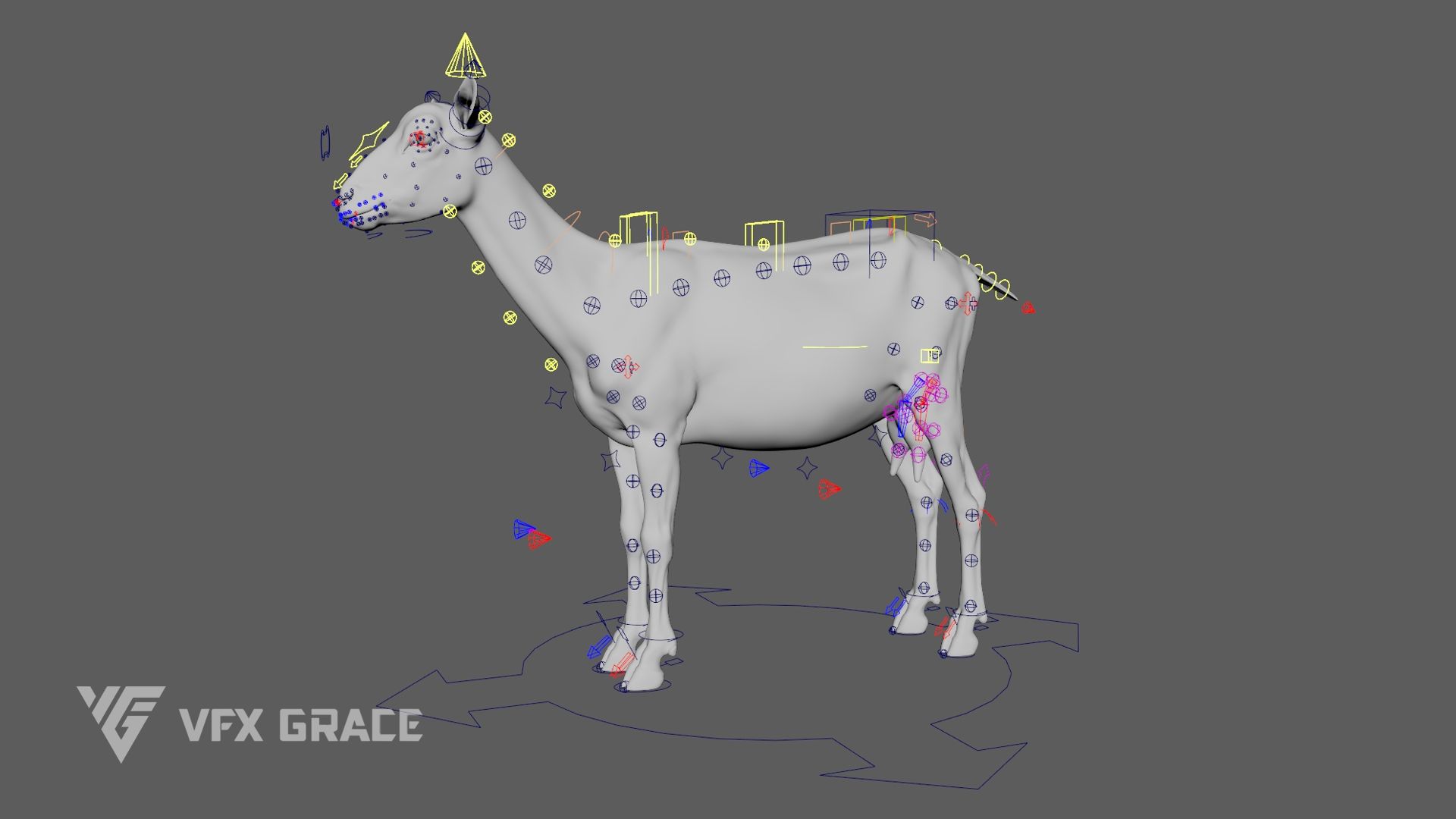

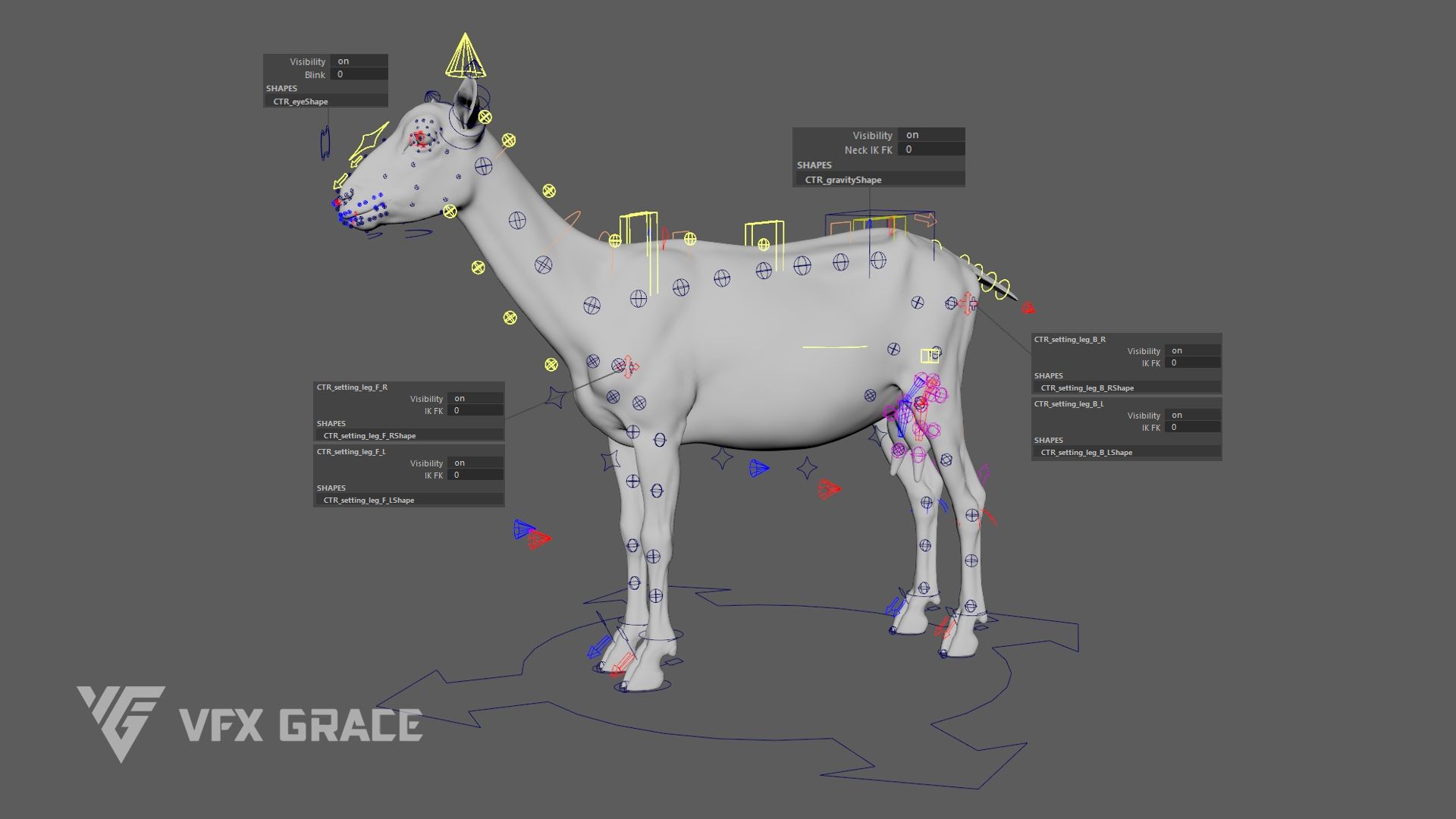

Rigging

With fine controllers, it's easier to create postures and animations, the features are as follows:
CTR_Root controls the entire model.
CTR_gravity ontrols the center of gravity, it comes with a customized attribute: Neck_IK_FK switches between IK and FK of the neck.
CTR_IK_spine_a is the controller of the posterior spine.
CTR_IK_spine_b is the controller of the middle spine.
CTR_IK_spine_c is the controller of the anterior spine.
CTR_belly controls the abdomen.
CTR_neck is the overall controller of the neck.
CTR_IK_neck_a, CTR_IK_neck_b... are IK controllers of the neck.
CTR_FK_neck_a, CTR_FK_neck_b are FK controllers of the neck.
CTR_IK_head controls the head.
CTR_eye controls the eyes.
CTR_jaw and CTR_chin controls the jaw, and the opening and closing of the mouth.
CTR_FK_tongue_a, CTR_FK_tongue_b... are controllers of the tongue.
CTR_ear_a_L, CTR_ear_b_L, CTR_ear_a_R, CTR_ear_b_R... are controllers of the ears.
CTR_tail_a, CTR_tail_b... are controllers of the tail.
CTR_Shoulders_F_L and CTR_Shoulders_F_R are controllers of the scapula.
CTR_Shoulders_B_R and CTR_Shoulders_B_R are controllers of the hip bone.
CTR_leg_f_R and CTR_leg_f_L are IK controllers of the front legs.
CTR_leg_B_R and CTR_leg_B_L are IK controllers of the hind legs.
CTR_FK_hip_B_L, CTR_FK_thigh_B_L, CTR_FK_shin_B_L are FK controllers of the legs.
CTR_setting_leg_B_L, CTR_setting_leg_F_L, CTR_setting_leg_F_R and CTR_setting_leg_B_R switch between IK and FK of the feet.
CTR_ankle_b_F_L and CTR_ankle_b_F_R are load-bearing controllers of the front legs.
CTR_IK_shin_B_R and CTR_IK_shin_B_L are load-bearing controllers of the hind legs.
Additionally, the body comes with more auxiliary controllers.
And more.

Specifications

File format: Saved as .mb files by default. It can be saved as .ma files if necessary.
Version supported: Created with Maya 2024.2. Maya 2024 or above is recommended for compatibility.

Caveats

To run faster, the fur is hidden, which should be displayed before rendering.
The hair of the characters is created in XGen Interactive with Arnold materials ready for rendering.
By default, Arnold uses GPU as the render device, and the sampling setting is suitable for medium quality output, as is shown in the preview image of the character. If you need a fine-tuned image, you can modify Arnold settings to your hardware limit.
The animation scene comes with Arnold lighting, which can be modified if required.
Except for the above, the character can be rendered directly.
